Overview of the MG1CS003 ECU and SPC5777 MCU
MG1CS003 ECU, part of Bosch’s MG1 family, is engineered to manage modern gasoline engines with a high degree of precision. It features the SPC5777 microcontroller, known for its advanced processing power and secure boot capabilities.
This combination delivers exceptional engine management but also adds complexity to programming and cloning tasks, which makes the use of a professional-grade ECU programming software like Hexprog II essential.
Technicians and tuners who handle BMW vehicles will appreciate that this ECU is widely used across various BMW models, ranging from compact series cars to luxury sedans and SUVs, making expertise with this ECU invaluable in today’s automotive repair and tuning market.
Why Hexprog II is the Perfect Tool for MG1CS003 ECU Programming
ECU Programming Tool, like Hexprog, II has been specifically developed to handle modern encrypted ECUs like the MG1CS003. Its advanced architecture supports the SPC5777 MCU and allows technicians to perform high-level tasks such as reading, writing, cloning, and repairing ECUs with confidence.

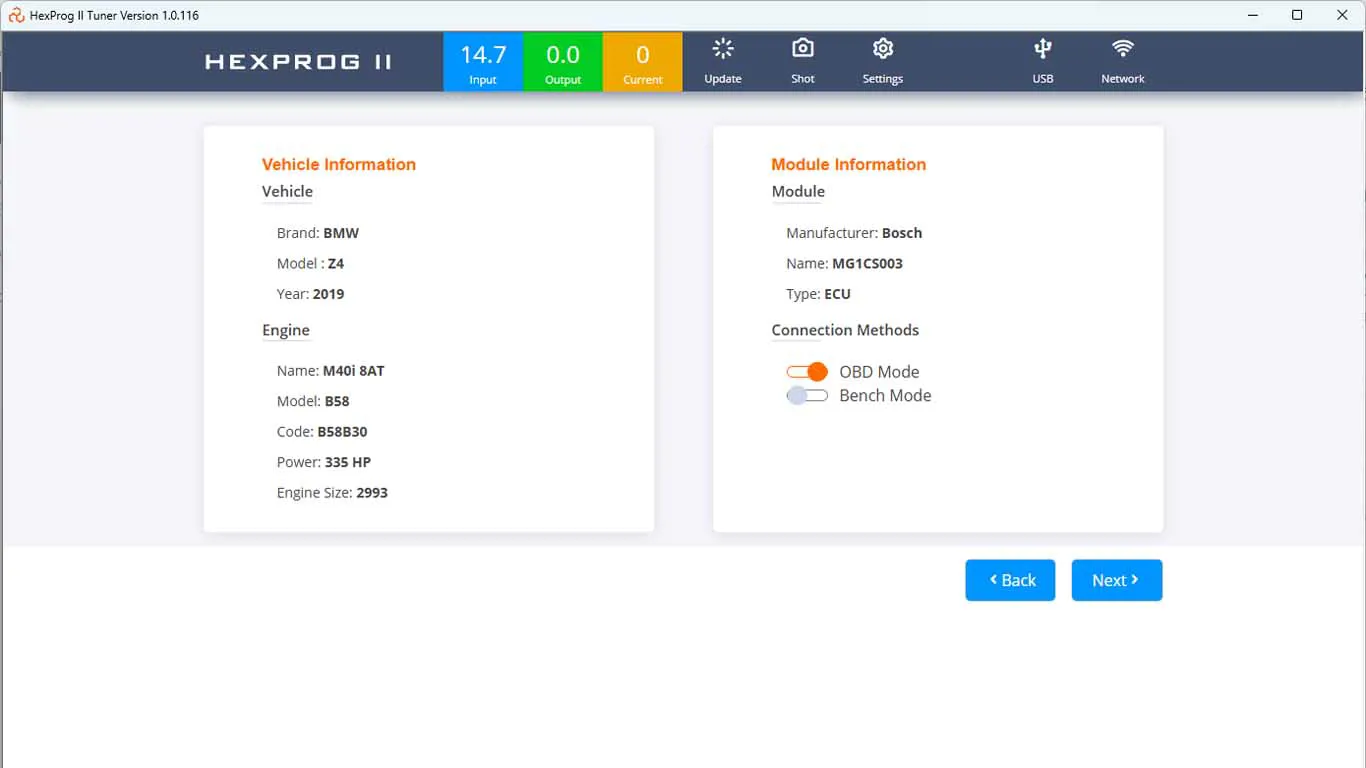

By offering dual-mode programming through Factory and OBD modes, Hexprog II gives users the flexibility to choose the best approach for their needs. Factory Mode provides deep access to internal flash memory, EEPROM, and MCU data, which is ideal for cloning, unlocking, or repairing ECUs that are corrupted.
The tool’s ECU programming software simplifies these complex operations by automating critical steps such as checksum correction and patching, which drastically reduces the risk of errors and ensures reliable results.

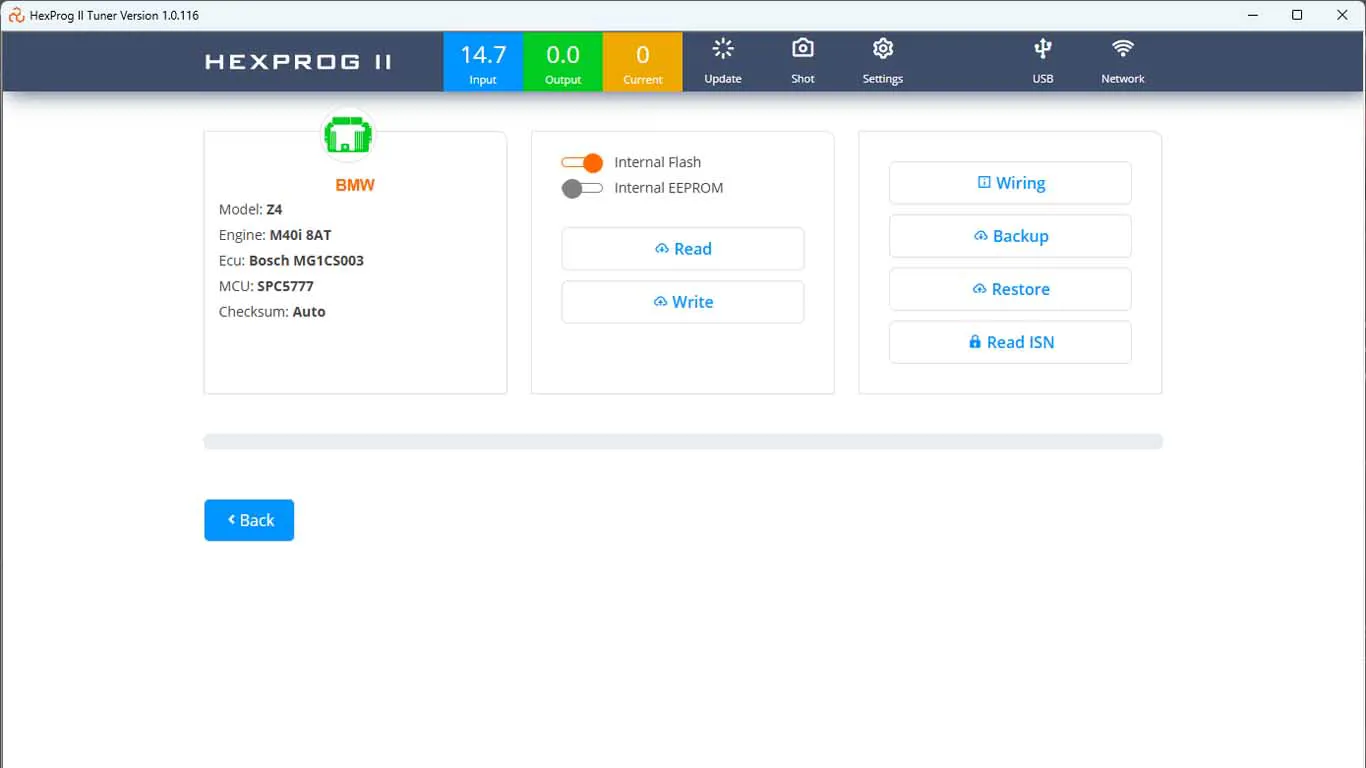

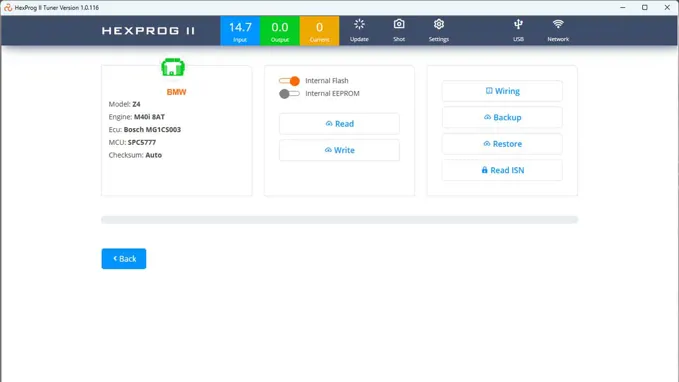

Programming MG1CS003 ECU via Factory Mode
When deeper access is needed, for example, in cloning, repairing a bricked ECU Factory Mode is your best option. Hexprog II, ECU Programming Tool, connects directly to the ECU via bench or boot connection, allowing full access to all memory regions. Factory Mode enables access to internal flash, external flash, and EEPROM, making it perfect for full ECU cloning and reliable recovery of corrupted or unresponsive ECUs. Thanks to the intelligent design of Hexprog II’s ECU programming software, tasks like unlocking, patching, and restoring ECUs are largely automated, saving time and reducing errors.

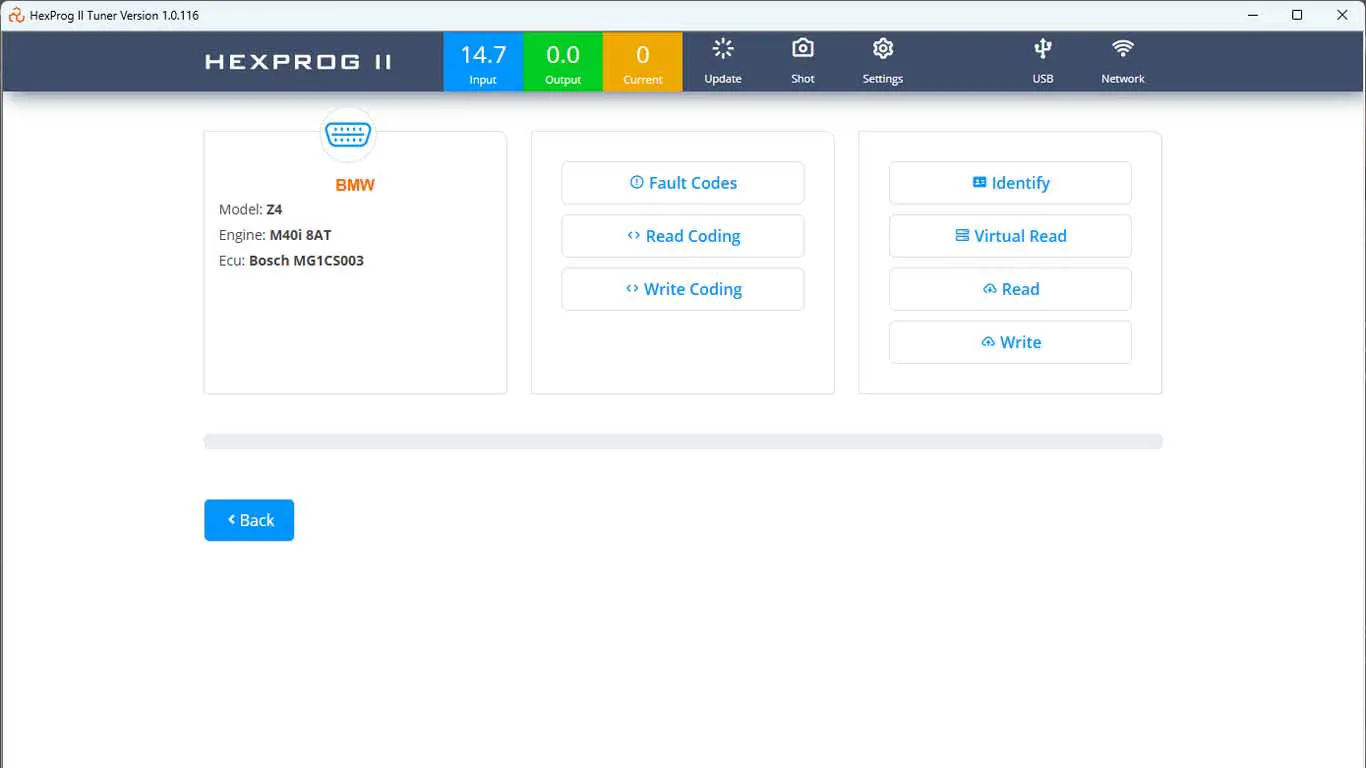

Programming MG1CS003 ECU via OBD Mode
For tuners and workshops handling BMW vehicles in a day-to-day setting, OBD programming is the fastest and most convenient option. This mode allows you to connect directly to the vehicle’s OBD port to perform read and write operations without physically removing the ECU from the car. This capability is invaluable for tuning or performing software updates in high-volume workshops where efficiency matters. Hexprog II, ECU Programming Tool, ensures secure and stable communication over OBD, making it a safe choice for programming the MG1CS003 ECU without compromising data integrity. Whether you’re remapping the engine management system for improved performance or applying manufacturer updates, Hexprog II’s OBD programming mode makes the process straightforward and fast.
Real-World Use Cases: Tuning, Cloning, and Repair
Hexprog II’s versatility makes it indispensable for professionals working with BMW ECUs, especially the MG1CS003. One of its most valuable features is its ability to handle ECU tuning with precision. Technicians can extract and modify engine maps, apply performance tuning, and then reflash the ECU safely. The software automatically performs checksum correction and patching, ensuring the ECU accepts the changes without triggering faults.
When it comes to ECU cloning, Hexprog II excels by allowing users to copy the entire content of an MG1CS003 ECU, including the EEPROM, flash memory, and microcontroller data, onto a donor unit. This is critical when replacing a defective ECU, as it ensures the replacement functions exactly like the original.
A key technical consideration for MG1CS003 ECUs is that they store the ISN (Individual Serial Number) within the internal EEPROM. This ISN, along with the VIN and other critical data, must be preserved during the cloning process. Hexprog II stands out as an ECU programming tool capable of cloning this complete dataset accurately. Moreover, Hexprog II provides the option to transfer only the internal EEPROM data, such as ISN and VIN, to another ECU. This becomes extremely useful in scenarios where the user wants to retain the original vehicle identity and security data while applying a different or performance mapped internal flash file.
However, for this partial transfer to succeed, the internal flash of the donor ECU must be in good condition and must be compatible with the recipient unit. This functionality becomes particularly valuable in advanced tuning workflows, especially when a technician wants to copy tuned or performance-optimized internal flash data while keeping the original ISN and VIN intact. Hexprog II’s precision and flexibility make it a powerful ECU programming software for this kind of targeted operation.
Beyond tuning and cloning, Hexprog II is also a reliable tool for ECU repair and recovery. If an MG1CS003 ECU becomes bricked due to failed programming or power loss during flashing, Hexprog II allows safe recovery through Factory Mode. Its structured workflow, automatic checksum verification, and compatibility with encrypted microcontrollers make recovery both simple and safe.
Step-by-Step: Cloning the MG1CS003 ECU Using Hexprog II
Cloning the MG1CS003 ECU, found in many modern BMW vehicles, requires a careful, structured process. With Hexprog II ECU Programming Tool and the Hexprog II Tuner software, this task becomes straightforward and secure. Below is a detailed, numbered guide that outlines each stage of the MG1CS003 ECU cloning procedure:
- Preparation
Before beginning, ensure that you have the Hexprog II hardware and a valid license for ECU Cloning within the Hexprog II Tuner software. The wiring diagram for the MG1CS003 ECU is available directly in the software. Arrange the necessary tools, connectors, and wires as needed for a stable bench connection. Preparation is crucial to avoid any miscommunication with the ECU during the process. - Accessing Bench Mode
The MG1CS003 ECU can only be accessed through Bench Mode. This means the ECU must be physically removed from the vehicle and connected to Hexprog II on a workbench using the appropriate cables. Carefully follow the wiring diagram and make sure that all connections are secure before applying power. - Reading Original ECU Data
Once the ECU is properly connected; the next step is to read the data from the original ECU. With Hexprog II, you can read the entire internal eeprom as well as extract the internal flash separately in .bin format, which is useful for modification or chip tuning. This step ensures you have the original calibration, ISN, VIN, and system configuration information stored safely. - Creating a Backup
Use the backup function within the Hexprog II ECU programming software to create a full backup of the original MG1CS003 ECU. This backup includes all essential memory areas such as EEPROM, internal and external flash, and microcontroller data. The backup is crucial for restoring data later for duplicating the ECU. - Preparing the New ECU
To proceed with cloning, prepare the donor ECU. Ensure that the replacement ECU is compatible with the vehicle and in good working condition. A mismatch or corrupted internal flash can lead to operational issues, so it’s critical to verify compatibility before restoration. - Restoring Data onto the New ECU
With the new ECU prepared, you can now restore the original data using Hexprog II. The cloning process transfers all necessary information from the backup, including ISN, VIN, and calibration data. It is strongly recommended to also back up the donor ECU before overwriting it, to retain a fallback option if needed. - ISN and Internal EEPROM Transfer
One key advantage of Hexprog II is its ability to specifically manage the internal EEPROM of the MG1CS003 ECU, where sensitive information like the ISN (Individual Serial Number) and VIN are stored. If desired, the user can transfer only the internal EEPROM data to another ECU. This is particularly useful when combining performance-mapped internal flash data from one ECU with the original ISN and VIN from another. For this to work seamlessly, the internal flash of the donor ECU must be in good condition and compatible with the recipient ECU. - Testing and Verification
After completing the cloning process, install the newly cloned ECU in the vehicle. Start the engine and check for correct operation. Use diagnostic tools to confirm that there are no error codes and that all functions are working properly. Verifying the cloned ECU’s performance is essential before finalizing the installation. - Finalization
Once all systems are confirmed to be working, finalize the job by securely reinstalling the ECU. Double-check that all connections are tight and the ECU is properly seated in its original location. The vehicle is now ready for return to the customer, operating on a fully cloned and functional MG1CS003 ECU.
ECU cloning with Hexprog II not only saves time and money but also provides technicians with a high level of control and precision. This process highlights the increasing importance of ECU programming tools and ECU cloning software in modern automotive repair. By allowing seamless transfer of performance or OEM configurations between ECUs, Hexprog II enables both routine repairs and advanced tuning projects with complete confidence.
Additional Services and Support for MG1CS003 ECU with Hexprog II
Beyond cloning, Hexprog II offers advanced features that make it a complete ECU programming tool for MG1CS003 ECUs. One of its standout capabilities is extracting and modifying internal flash data, allowing users to fine-tune performance parameters or prepare files for chip tuning. This level of control is ideal for both enthusiasts and professionals seeking to optimize BMW engine performance.
Among the most popular services is DTC Off, which allows selective removal of diagnostic trouble codes. These and other services are accessible through user accounts at www.hexprog.com, where users can upload files, request custom modifications, and download them post-processing. All services are transparently priced and designed to support tuning and compliance needs.
After making any changes, Hexprog II ensures data safety by automatically verifying checksum corrections during write-back. This guarantees the reliability of the modified file and prevents ECU errors. Whether you’re adjusting torque limits, ignition timing, or disabling specific DTCs, Hexprog II's ECU programming software ensures the changes are applied safely.
What sets Hexprog II apart is its strong support system. From user manuals to responsive technical help, even beginners can navigate ECU cloning and tuning with confidence. Regular software updates and a growing online knowledge base ensure users are always equipped with the latest tools and techniques.
In summary, Hexprog II is not just a tool, it’s a comprehensive solution for professionals working on MG1CS003 ECUs. With reliable cloning, EEPROM-level control, online services like DTC Off, and unmatched support, it remains a top choice for modern ECU programming and chip tuning.
More Info about MG1CS003
Hexprog II is a specialized ECU Chip Tuning Tool that can read and write all contents of the MG1CS003 ECU using Bench Mode. For more detailed information about the MG1CS003 ECU and the capabilities of Hexprog II Chip Tuning Tool, you can refer to the following links:
- Hexprog II MG1CS003 Details: BMW MG1CS003
- Hexprog II product page: HexProg II Ecu Programming/Chip Tuning Tool
- Hexprog II ordering page: Hexprog II Chip Tuning Tool Full Set
- License Package: Hexprog II List for Package HPP03 / HPP30
Please visit the provided links to learn more about the MG1CS003 ECU and Hexprog II Tool for ECU Chip Tuning.
