Hexprog II ECU Programming Tool for Cloning DCM3.5

Citroen DS4
Citroen DS4

Famed for its leadership in automotive technology, Delphi has cemented its reputation as a top-tier provider of groundbreaking solutions for the automotive industry. Among its standout offerings is the DCM3.5 OnCE ECU, which epitomizes Delphi's unwavering dedication to excellence and innovation across its product range. OnCE" typically stands for "On-Chip Emulation," which is a feature enabling real-time debugging and testing of the microcontroller's firmware. This functionality allows developers to interact with the internal components of the microcontroller while the application is running, facilitating efficient debugging and optimization. When coupled with an ECU Programming Tool, OnCE capabilities enhance the process of reading, writing, and modifying the firmware within automotive Engine Control Units (ECUs).

The DCM3.5 engine control unit (ECU) holds a prominent position in the automotive landscape, particularly recognized within Citroen, Peugeot, and Toyota vehicles. Despite being part of an older generation of ECUs, the DCM3.5 maintains its esteemed status due to its widespread integration across these iconic car brands. This ECU serves as the central hub for managing a plethora of engine performance parameters, encompassing everything from Chip Tuning to ECU Cloning. With the addition of an advanced ECU Programming Tool, it reaches new levels of sophistication and versatility, empowering automotive professionals to optimize performance and customize vehicle settings with precision.

ECU Cloning, which involves duplicating the data and setup of an existing ECU, has become indispensable in vehicle maintenance and repair. The support for cloning provided by the DCM3.5 ECU ensures that when a replacement or upgrade is needed, the new module can seamlessly assume the identity and functions of its predecessor. This capability not only simplifies the replacement process but also helps minimize vehicle downtime, especially in critical applications like commercial fleets. Chiptuning, synonymous with enhancing performance, involves modifying the ECU's software to optimize engine parameters. The programmable nature of the DCM3.5 ECU facilitates chiptuning, allowing users to fine-tune performance characteristics. Whether the goal is to increase power, improve fuel efficiency, or strike a balance between the two, the ECU's adaptability permits tailored adjustments to meet specific operational requirements while adhering to safety and regulatory standards. ECU Programming, a broader term encompassing software updates, parameter adjustments, and customization, is a foundational capability of the DCM3.5. The flexibility not only addresses emerging challenges but also supports compliance with evolving emissions standards, showcasing Delphi's dedication to sustainable and future-proof automotive solutions.

This cutting-edge ECU Programming Tool seamlessly integrates with the DCM 3.5 ECU, unlocking a realm of possibilities for customization, diagnostics, and performance optimization. With the addition of this advanced tool, the DCM 3.5 OnCE ECU solidifies its position as a beacon of innovation and reliability in the automotive realm, catering to the demands of both everyday drivers and performance enthusiasts with finesse and precision. The rising demand for sophisticated and user-friendly ECU Programming Tools emphasizes their essential role in the ever-changing landscape of automotive technology. These tools enable users to fully utilize the capabilities of modern vehicles. As technology continues to advance, ECU Programming Tools will remain at the forefront of innovation, shaping the future of automotive customization and optimization.

Hexprog II ECU Programming Tool and Chip Tuning Tool emerges as an outstanding device tailored for the meticulous reading of DCM3.5 ECUs, boasting support in Boot Mode facilitated through the utilization of a provided Jtag Cable. To initiate this seamless process, users must establish a connection by harnessing the Jtag connector from port D, meticulously linking it to the corresponding port on the ECU PCB in strict accordance with the prescribed wiring instructions, paying meticulous attention to the color-coded wires. Furthermore, users are compelled to connect the power and ground wires from connector A to the designated pinouts on the ECU, a step necessitating precise configuration to ensure adherence to specified parameters. This meticulous setup guarantees the establishment of a robust and secure connection between the hardware components, thereby facilitating reliable operations.

Essentially, this method utilizes the Jtag cable alongside Hexprog II hardware to access the ECU's Boot Mode for specialized procedures. Strict adherence to the provided wiring instructions, especially concerning color-coded differentiations, is essential to ensure the smooth and precise establishment of necessary connections. Concurrently, the careful connection of power and ground wires from connector A to the ECU pinout is vital for establishing a stable and favorable operational environment for the ECU during the Boot Mode procedure.

HexProg II tool's proficiency in DCM3.5 ECU Cloning and Chip Tuning underscores its unwavering commitment to staying ahead in the realm of technological advancements. In an era where vehicles are increasingly complex and technologically sophisticated, HexProg II tool empowers automotive professionals to adeptly navigate the intricacies of ECU management with confidence. It enables efficient and precise tuning for optimal performance, cementing its reputation as an exceptional ECU Programming Tool.

An outstanding attribute of the DCM3.5 ECU is its ability to seamlessly manage scenarios where there is no immobilizer (IMMO) present in the OTP segment. This remarkable feature not only simplifies the ECU Cloning process but also eliminates potential challenges associated with IMMO configurations. As a result, the ECU Cloning operation becomes smoother and more efficient, providing automotive professionals with a reliable and hassle-free solution. This advanced functionality enhances the overall user experience, making Hexprog II as a trusted and indispensable tool for ECU Programming Job.

Below are the steps for cloning DCM3.5 ECU:

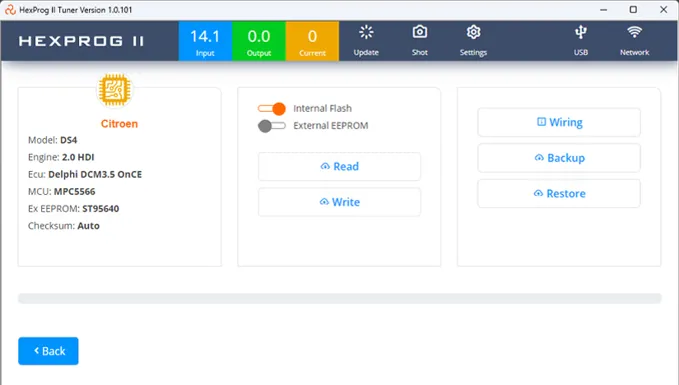

DCM3.5 HexProg II software

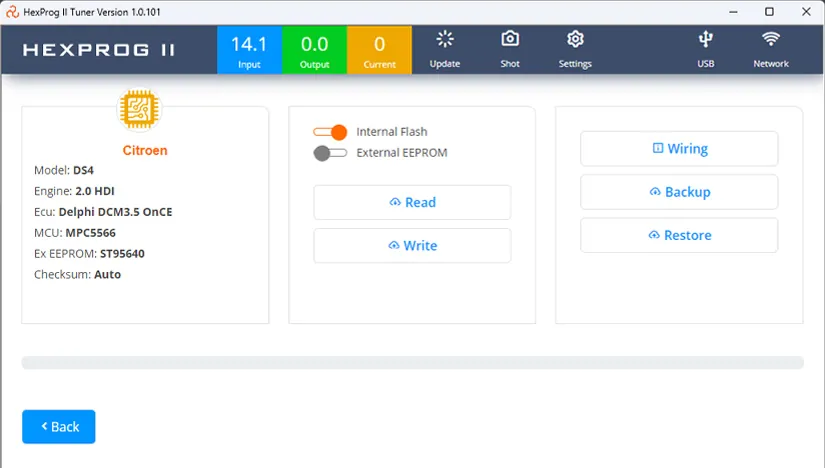

DCM3.5 HexProg II software
  1. Preparation: Before starting the cloning process, you'll need Hexprog II hardware and Hexprog II Tuner ECU Programming Software with valid ECU Cloning license. Wiring diagram of the DCM3.5 ECU is in the software itself, arrange soldering equipment and stay wires as necessary.
  2. Accessing Boot Mode:  Since this DCM3.5 ECU can only be accessed through Boot Mode, the first step is to open the ECU and establish a connection through OnCE to its internal circuitry along with external connections. This is usually done using specialized tools and JTag wires given with Hexprog II, and it requires a delicate touch to avoid damaging any components.
  3. Reading Original ECU Data: OnCE the connection to the DCM3.5 ECU is established, read and extract the data from the original DCM3.5 ECU. It is possible to read internal flash separately in .bin format that can be used for modification and Chip tuning. This data contains essential information about the vehicle's settings, calibration, and configurations
  4. Creating a Backup: The user needs to use the backup button to back up the whole DCM3.5 ECU data. After successfully reading the data from the original DCM3.5 ECU, backup files are created. This backup file contains all the information required to clone the ECU accurately. It is essential to store these backup files safely as it serves as the foundation for the cloning process.
  5. Preparing the New ECU: If the goal is to clone the DCM3.5 ECU onto a new or refurbished one, the new ECU must be prepared. This involves ensuring that the new DCM3.5 ECU is compatible with the vehicle and in working condition.
  6. Restoring Data onto New ECU: With the new DCM3.5 ECU prepared, the next step is to restore the original backup file onto the new ECU. This process transfers all the original settings and configurations to the new ECU, effectively creating an identical copy of the original. Before restoring the original data, we recommend users to make a backup of new or donor DCM3.5 ECU for safety concerns in the future.
  7. Testing and Verification: After the cloning process is complete, it's essential to verify the functionality of the newly cloned DCM3.5 ECU. The vehicle should be tested to ensure that all systems are working correctly and that there are no error codes or malfunctions.
  8. Finalization: OnCE the cloned DCM3.5 ECU is verified to be functioning properly, the DCM3.5 ECU can be securely reinstalled in the vehicle. It is crucial to ensure that all connections are secure, and the ECU is properly seated.

ECU Cloning emerges as a crucial solution, meticulously safeguarding all original settings and calibration data intact. This rigorous approach ensures not only the flawless functionality of the vehicle but also obviates the need for laborious and intricate reprogramming procedures. Essentially, the ECU Cloning process ensures the creation of an exact duplicate of the existing ECU, capturing every nuance of the vehicle's configuration. This encompasses vital settings, calibration parameters, and any specialized data essential for the vehicle's peak performance.

Recognizing the intricacy inherent in ECU Cloning, Chip Tuning, and ECU Programming, it's essential to entrust these sophisticated procedures to highly skilled professionals or experienced technicians. These individuals should possess a comprehensive understanding of the complexities involved and utilize a trusted ECU Programming Tool like Hexprog II to ensure precise and reliable outcomes.

Despite their complexity, cloning and programming processes provide essential solutions for maintaining the functionality of vehicles with advanced ECUs. These procedures enable automotive specialists to offer effective resolutions, ensuring optimal and reliable vehicle performance. Entrusting these tasks to qualified professionals not only protects the vehicle's well-being but also enhances customer satisfaction and trust in the automotive service industry and ECU Programming Job

Other Services Supported:

HexProg II demonstrates remarkable versatility, extending its capabilities beyond DCM3.5 ECU Cloning to finely tailor Internal Flash Data, meeting users' specific needs. This personalized data can be seamlessly reprogrammed onto the ECU. What distinguishes HexProg II is its cutting-edge ECU Programming Software, which not only simplifies adjustments but also ensures data integrity through automatic checksum validation. This enhanced reliability elevates the customization experience, establishing HexProg II as a premier ECU Programming Tool for those valuing precision and dependability in customization endeavors.
Expanding on the range of services offered, HexProg's online service platform provides a comprehensive suite of options for the DCM3.5 ECU. Users can leverage this platform for diverse services such as EGR Off, DPF Off and DTC Off. This online service is accessible through our server at www.hexprog.com, where users can log in to their accounts to initiate and manage these services. The online service platform streamlines the process of accessing and applying these modifications. Users can navigate through the user-friendly interface, select the desired services, and initiate the process with ease. The platform is designed to ensure a user-friendly experience while maintaining a high level of security and reliability.

Hexprog II excels in seamlessly reintegrating modified files back into the system with its intuitive ECU Programming Software, ensuring user-friendliness throughout the process. The incorporation of the automatic checksum feature further enhances operation efficiency and accuracy in writing the modified files. With Hexprog II's advanced capabilities, users can confidently apply changes to files and effortlessly write them back, all while benefiting from the reliability and assurance provided by this top-notch ECU Programming Tool.

HexProg II not only showcases remarkable capabilities but also distinguishes itself as an innovative solution in the realm of ECU Programming Tools. It elevates the user experience by integrating a robust customer support system meticulously designed to offer comprehensive assistance. This support system aims to empower users with ample resources, ensuring a seamless and efficient journey through the ECU Cloning procedure. HexProg II's steadfast commitment to user satisfaction is evident in its dedicated support system, which includes detailed guides, tutorials, and responsive customer service. This comprehensive assistance further solidifies HexProg II's position as a dependable and indispensable ECU Programming Tool in the industry, earning trust and accolades from automotive professionals worldwide.

More Info about DCM3.5

Hexprog II is a specialized ECU Chip Tuning Tool that can read and write all contents of the DCM3.5 ECU using Boot Mode. For more detailed information about the DCM3.5ECU and the capabilities of Hexprog II Chip Tuning Tool and ECU Programming Tool, you can refer to the following links:

Please visit the provided links to learn more about the DCM3.5ECU and Hexprog II Tool for ECU Chip Tuning
