The Role of the ECU in Modern Vehicles
ECUs (Engine Control Units) play a crucial role in modern vehicles, managing a variety of engine functions and essential systems. Whether you're looking to replace a damaged ECU, restore lost data, or perform Chip Tuning, ECU cloning and ECU programming have become indispensable skills in automotive diagnostics and repair.
ECU cloning involves creating an exact replica of an original ECU’s data, allowing for quick replacement or restoration without the need for reprogramming the unit. ECU programming, on the other hand, allows you to modify or fine-tune the ECU to optimize engine performance, improve fuel efficiency, adjust parameters, or meet specific requirements such as emission standards.
To carry out these tasks effectively, a reliable ECU Programming Tool is essential. One such tool is the Hexprog II, which provides professionals with the precision and flexibility needed to clone and program Denso SH1 ECUs seamlessly.
In this guide, we will focus on using the Hexprog II ECU Programming Tool for cloning and programming the MAZDA SH1 ECU, demonstrating its powerful capabilities in simplifying the entire process. Whether you're a technician looking to clone, reprogram, or fine-tune a MAZDA ECU, the Hexprog II will help you achieve professional results with ease.
Denso SH1 ECU in MAZDA Models
Denso, a globally recognized leader in automotive technology, has consistently set the standard for excellence within the automotive industry. Known for its cutting-edge solutions across various automotive systems and components, Denso plays a critical role in advancing modern vehicle technologies. One of the standout products from Denso is the SH1 ECU, which exemplifies the brand's commitment to precision engineering and high-performance solutions. Commonly found in diesel-powered MAZDA vehicles, the Denso SH1 ECU serves as the heart of the vehicle’s electronic system, managing essential engine functions and optimizing performance. This ECU is an indispensable component for both standard vehicle operations and can be chip-tuned for performance optimization.

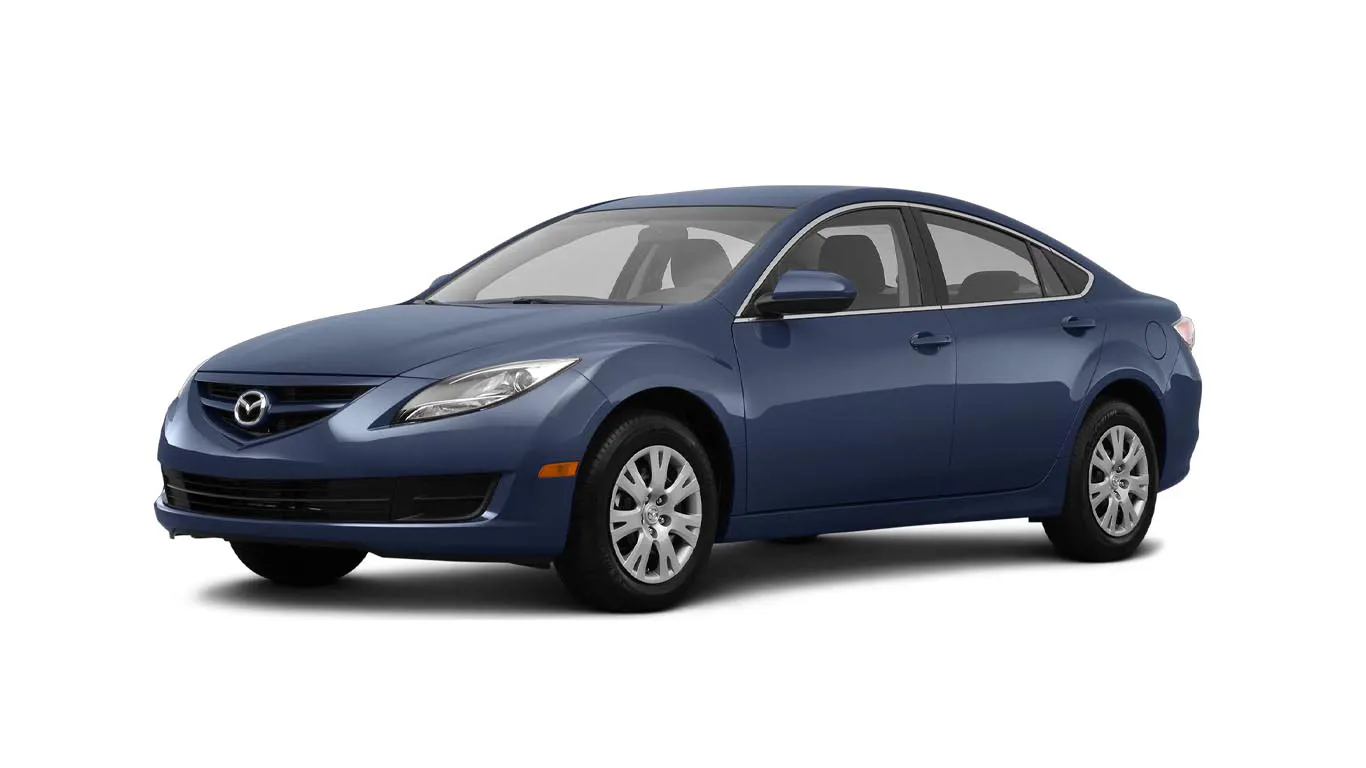

Denso SH1 ECU, powered by the SH72543 MCU, is a critical component in modern vehicle systems, particularly within the MAZDA range, including models like the Mazda 6, Atenza, and CX,5. Known for its advanced engineering, this ECU underscores Denso’s reputation for delivering high-quality and reliable automotive electronics. As a vital part of the engine control module family, it ensures optimal performance and fuel efficiency, key attributes in diesel engine tuning. With the SH72543 MCU at its core, the SH1 ECU integrates seamlessly across vehicle systems, making it ideal for ECU Cloning, Chip Tuning, and advanced ECU programming tasks. Whether you're tuning for improved torque, better fuel economy, or emissions compliance, the Denso SH1 ECU is engineered to support a wide range of diesel-specific performance requirements.
Denso SH1 durable architecture makes it fully compatible with advanced ECU Programming tools like the Hexprog II, supporting seamless ECU Cloning, diagnostics, and calibration tasks.
ECU Cloning is essential for efficient module replacement. By duplicating the original ECU’s data onto a new unit, technicians can ensure full functionality without reprogramming from scratch, minimizing downtime and avoiding complex reinitialization procedures.
For performance tuners, the SH1 ECU also supports Chip Tuning, enabling detailed engine parameter adjustments via specialized ECU Programming Software. Whether optimizing fuel maps, ignition timing, or boost levels, professionals can achieve targeted improvements in power, responsiveness, and efficiency.
As the automotive industry continues to advance, the Hexprog II Chip Tuning and ECU Programming Tool stands out as a powerful and forward-thinking solution, designed to meet the increasing demands of modern ECU work. Known for its precision and versatility, Hexprog II is fully compatible with the Denso SH1 ECU, supporting both ECU Cloning using Boot Mode and Chip Tuning operations in Bench Mode.
For tasks that require complete access to internal memory, Boot Mode is utilized. This process involves carefully opening the ECU housing and connecting wires to specific points on the PCB, allowing low-level communication with the microcontroller. It ensures a dependable read and write process for critical operations. In contrast, Bench Mode provides a more accessible option. It allows technicians to read and write data directly on the ECU without opening the unit, making it ideal for faster diagnostics, cloning, or programming while minimizing risk and saving time.
With support for both connection methods, the Hexprog II ECU Programming Tool gives professionals the flexibility to choose the most appropriate approach based on the ECU's condition and the nature of the task. This ensures safe, efficient, and precise programming of the Denso SH1 ECU across a variety of use cases.
Cloning the Denso SH1 ECU: A Detailed Step-by-Step Process
- Preparation
Before starting the cloning process, make sure you have all the necessary tools ready. First, ensure that you have the Hexprog II hardware and Hexprog II Tuner ECU Programming Software, along with a valid ECU Cloning license. The software will also provide you with the wiring diagram for the Denso SH1 ECU, helping you understand the connections required for the task.
Prepare your soldering equipment and ensure you have the appropriate wires for making the necessary connections. Depending on whether you're using Boot Mode to clone ECU or Bench Mode to tune, you may need to solder wires to specific points on the ECU. Lastly, set up your work area to ensure it’s clean and well, organized, minimizing any risks during the process.
Once all preparations are complete, you’ll be ready to begin the cloning process.
- Accessing Bench Mode and Boot Mode

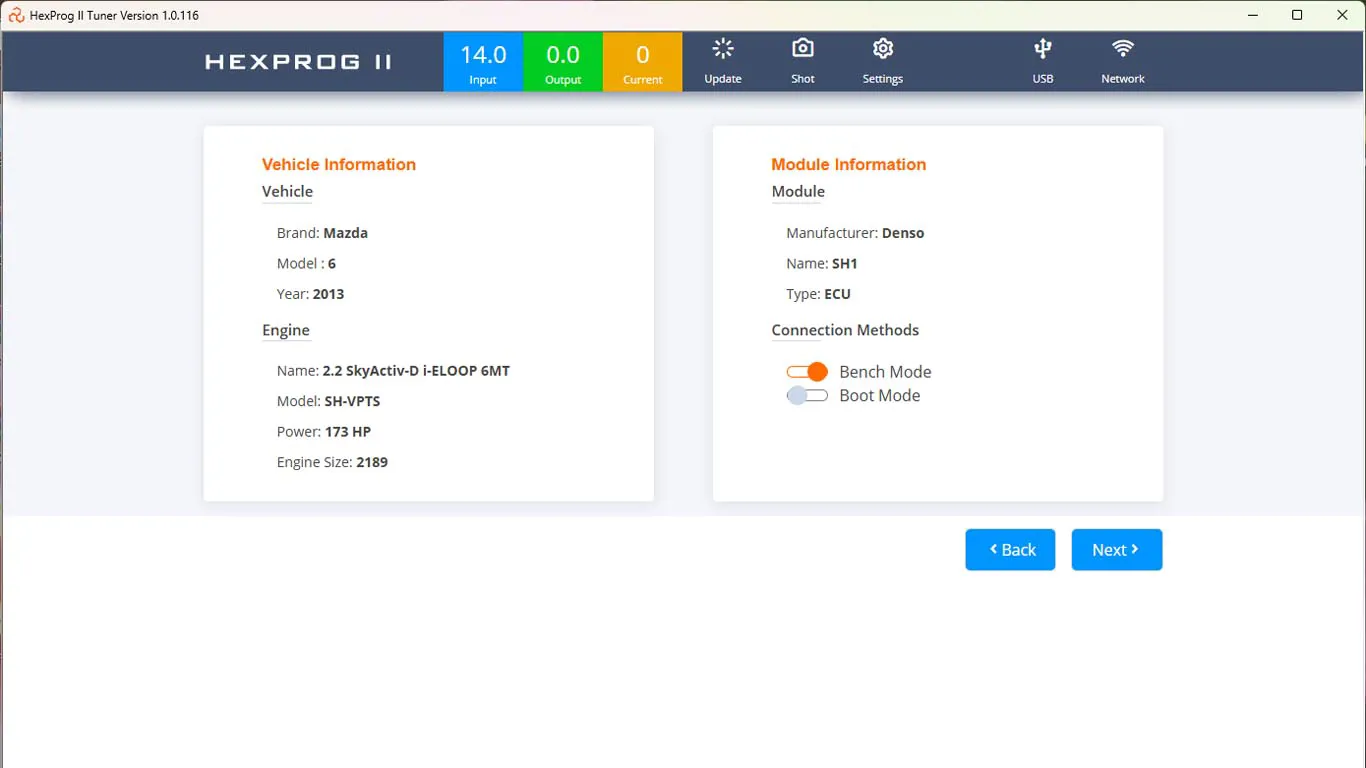

To begin the cloning process, start by connecting the Denso SH1 ECU to the Hexprog II Chip tuning tool. For reading and writing the ECU, you can use Boot Mode. In Bench Mode, connect the SH1 ECU to the Hexprog II using the appropriate cables and connectors, ensuring that all connections are secure for reliable data transfer for tuning and modification purposes.
However, cloning the Denso SH1 ECU requires Boot Mode. For this step, you will need to use a JTAG cable adapter to access the ECU’s Boot Mode. Once connected, Boot Mode will allow you to clone the ECU by reading its data and writing it onto a new module.
Make sure both your Bench Mode and Boot Mode connections are set up correctly to ensure seamless functionality.
- Reading Original ECU Data

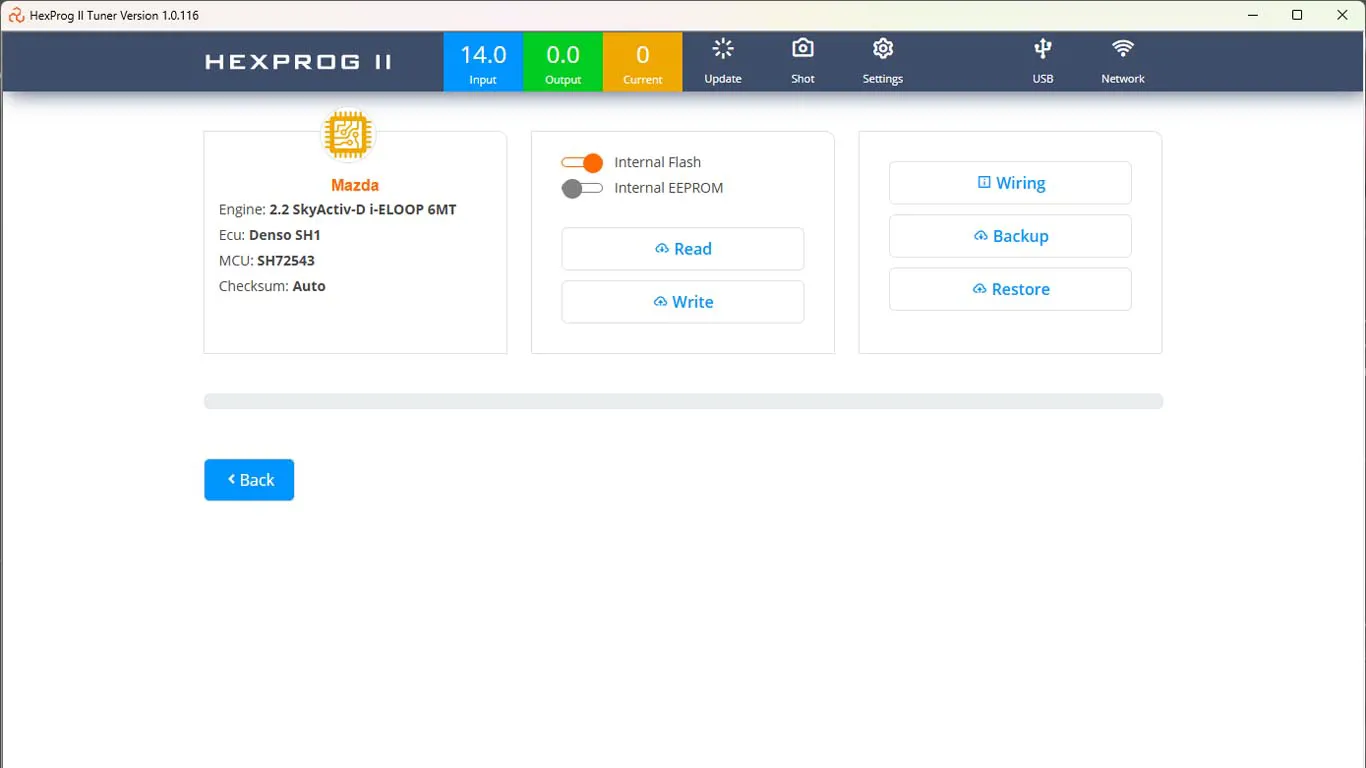

Once the connection to the Denso SH1 ECU is properly established, the next step is to read and extract the data from the original ECU. Using the Hexprog II tool, you can read the internal flash of the ECU, which will be saved in .bin format. This file can be used for further modifications, including Chip Tuning or adjustments to engine parameters.
The data extracted contains vital information about the vehicle’s settings, calibration, and configurations, such as fuel maps, ignition timing, and more. This data serves as the foundation for creating a cloned ECU or optimizing the vehicle’s performance through tuning.
- Creating a Backup
After successfully reading the data from the Denso SH1 ECU, it's essential to create a backup of the entire ECU data. Use the backup button in the Hexprog II tool to generate a secure backup file. This file will contain all the necessary information to accurately clone the SH1 ECU.
Storing these backup files securely is critical, as they serve as the foundation for the cloning process. Without this backup, the cloning process cannot proceed, so ensure the file is saved in a safe location before moving on to the next steps.
- Preparing the New ECU
Before proceeding with the cloning process, the new ECU needs to be prepared. If the goal is to clone the Denso SH1 ECU onto a new or refurbished unit, ensure that the new ECU is compatible with the vehicle and is in proper working condition. Verify that the new ECU matches the specifications of the original unit to ensure it functions correctly once the cloning process is complete.
Having a properly prepared ECU will facilitate a smooth cloning process and guarantee optimal performance in the vehicle once the cloning is done.
- Restoring Data onto New ECU
Once the new ECU is prepared, the next step is to restore the original backup file onto it. This process transfers all the settings, configurations, and data from the original Denso SH1 ECU to the new unit, effectively creating an identical copy. The restored data ensures that the new ECU will operate with the same functionality and performance as the original.
For safety and future convenience, it is highly recommended to create a backup of the new or donor ECU before restoring the original data. This precaution ensures that you have a safe, working copy of the new ECU's data in case any issues arise during or after the cloning process.
- Testing and Verification
Once the cloning process is complete, it’s critical to verify the functionality of the newly cloned Denso SH1 ECU. Start by testing the vehicle to ensure that all systems are functioning as expected. Pay close attention to engine performance, communication with other vehicle modules, and make sure there are no error codes or malfunctions.
If any issues arise, recheck the connections and ensure that the ECU cloning was done properly. A thorough test ensures that the cloned ECU operates just as reliably as the original, confirming the success of the cloning process.
- Finalization
After successfully verifying that the cloned Denso SH1 ECU is functioning properly, the next step is to securely reinstall the ECU into the vehicle. Ensure that all connections are properly secured and that the ECU is seated correctly in its designated position.
With the Hexprog II Chip tuning and ECU Programming tool, you can double-check the ECU’s functionality one last time to confirm that everything is operating smoothly. Once the ECU is reinstalled, perform a final check to ensure that all systems are working as expected and the vehicle is ready for use, with the cloned ECU performing at its full potential.
HexProg II's Expanded Capabilities for the Denso SH1 ECU
HexProg II is not just limited to Denso SH1 ECU Cloning; it goes far beyond this primary function, offering a comprehensive suite of services designed to enhance and fine-tune your ECU. This versatility allows the tool to expertly manage and adjust Internal Flash Data, tailoring it to the unique needs of each user. The flash data is easily reprogrammed onto the ECU, ensuring optimal performance and precise customization.
What sets HexProg II apart is its advanced ECU Programming Software, which is designed to streamline the process of tuning and modification. This software ensures data integrity through automated checksum validation, providing an added layer of reliability that enhances the overall customization experience. As a result, HexProg II has become the go-to solution for automotive professionals and enthusiasts seeking unmatched precision and reliability in ECU Programming.
Furthermore, HexProg II offers a wide range of services that extend far beyond simple ECU cloning. With its powerful features such as EGR Off, DPF Off, and DTC Off, users can effortlessly apply these modifications to the Denso SH1 ECU. These services, which can be easily applied using third-party software, help enhance vehicle performance, remove unwanted restrictions, and ensure smoother operations. Whether it's optimizing exhaust gas recirculation, disabling the diesel particulate filter, or clearing diagnostic trouble codes, HexProg II ensures precise execution of these tasks with ease.
After modifying the data, HexProg II allows users to seamlessly integrate the altered data back into the ECU system. Its intuitive interface, coupled with the automated checksum feature, guarantees a smooth and efficient process when writing the modified file. This ensures both accuracy and speed, making HexProg II Chip tuning and ECU Programming tool reliable for professionals and DIY enthusiasts alike.
Beyond its technical capabilities, HexProg II is backed by a comprehensive customer support system. This system is designed to provide users with all the resources they need, ensuring that each step of the ECU Cloning and ECU Programming process is as smooth and effective as possible. With HexProg II, automotive professionals have a dependable, cutting-edge tool at their disposal, empowering them to perform ECU modifications and restorations with confidence.
More Info about SH1 ECU
Hexprog II is a specialized ECU Chip Tuning Tool that can read and write all contents of the Denso SH1 ECU using Bench Mode, while full ECU Cloning is supported via Boot Mode with the help of a JTAG adapter. For more detailed information about the SH1 ECU and the capabilities of the Hexprog II Chip Tuning and ECU Programming Tool, you can refer to the following resources:
