Hexprog II Mastery: Sim2K-240 ECU and TCU Cloning Unleashed

Hyundai Santa Fe
Hyundai Santa Fe

SIM2k-240 Engine Control Unit (ECU), a product of the esteemed KIA-Hyundai group, is a sophisticated and multifaceted automotive electronic control module that stands at the forefront of cutting-edge technology. This ECU, renowned for its advanced capabilities, finds applications not only in the standard operations of vehicles but also plays a pivotal role in the realms of ECU Cloning and ECU Tuning.

Designed and engineered with precision, SIM2k-240 ECU serves as the central nervous system of the vehicle's engine management system. It meticulously governs and optimizes a myriad of parameters, including but not limited to fuel injection timing, air-fuel mixture, ignition timing, and other critical factors that directly impact the overall performance of internal combustion engines. This level of control and regulation ensures not only peak performance but also adherence to stringent standards related to fuel efficiency and emissions control.

KIA-Hyundai group's commitment to innovation and technological excellence is prominently showcased in the SIM2k-240 ECU. As vehicles become more advanced and interconnected, the ECU's role becomes increasingly vital, adapting to diverse driving conditions and optimizing performance in real-time. Its integration with state-of-the-art sensors and communication interfaces allows for seamless interaction with various vehicle subsystems, contributing to an enhanced driving experience characterized by responsiveness and adaptability.

ECU Cloning involves creating identical copies of the original ECU, enabling efficient and effective replacements without the need for extensive reprogramming. This process is particularly valuable in situations where ECU replacements are required due to malfunctions or upgrades. ECU Tuning, on the other hand, involves modifying the parameters and settings within the ECU to optimize performance according to specific preferences or requirements. Enthusiasts and professionals alike turn to ECU Tuning to unlock hidden potential, improve fuel efficiency, or tailor the vehicle's behavior to suit particular driving conditions. SIM2k-240 ECU, with its robust architecture and advanced algorithms, provides a solid foundation for these customization processes.

Hexprog II, a user-friendly ECU Programming and ECU Chip Tuning Tool, stands out as an efficient solution for cloning Engine Control Units (ECUs) and Transmission Control Units (TCUs) in Boot Mode. This cutting-edge tool simplifies the ECU and TCU Cloning process by allowing users to easily Back Up and Restore data from both the original and donor units. This streamlined approach ensures a quick and successful ECU Cloning Job.

A notable feature of Hexprog II is its ability to perform ECU Cloning without Immobilizer (IMMO) in the One-Time Programmable (OTP) portion of the ECU. This absence of IMMO in the OTP section contributes to the smooth execution of the cloning process, ensuring a seamless transfer of data between the original and donor units. This reliability is key to achieving successful ECU and TCU Cloning Job.

What sets Hexprog II apart is its versatility and compatibility, making it a preferred choice for automotive technicians and programmers. The Chip Tuning Tool's adaptability to a wide range of ECUs and TCUs enhances its utility across various vehicle makes and models. Its user-friendly interface and advanced functionalities empower technicians to efficiently carry out ECU Cloning tasks, contributing to time and resource savings in automotive diagnostics and programming.

Hexprog II emerges as a standout solution for ECU and TCU Cloning in Boot Mode, offering an intuitive and streamlined process for backing up and restoring data. With its notable capability to perform ECU Cloning without IMMO in the OTP section, coupled with versatility and compatibility, Hexprog II has become a top choice among automotive technicians and programmers seeking a reliable Chip Tuning Tool for their ECU Diagnostic and ECU Programming needs.

SIM2k-240 Engine Control Unit (ECU) represents a distinctive and complex module within the Hyundai lineup. It is characterized by its intricate design and features, making it one of the most challenging ECUs associated with Hyundai vehicles. Notably, the only available mode for interfacing with this particular ECU is Boot Mode, necessitating the physical opening of the unit to access and manipulate data through read and write operations. To navigate the complexities inherent in this ECU, the use of Hexprog II Tuner software in conjunction with the dedicated Hexprog II hardware proves to be a highly effective solution. Hexprog II hardware, equipped with advanced capabilities, serves as a crucial intermediary in the process of cloning this challenging ECU. By leveraging the backup and restore options within Hexprog II Tuner software, automotive technicians gain a powerful toolset for seamlessly replicating ECU data.

The intricacies of this ECU demand a meticulous approach, and Boot Mode becomes instrumental in overcoming the challenges posed by its unique configuration. Opening the ECU and engaging in read-write operations enables technicians to interact with the ECU at a fundamental level, accessing and manipulating the necessary data for ECU Cloning purposes. The reliance on Hexprog II hardware, complemented by the intuitive features of Hexprog II Tuner software, ensures a comprehensive and precise ECU Cloning process.

Hexprog II hardware, specifically designed to interface with challenging ECUs like the one found in certain Hyundai models, enhances the efficiency and success rates of the cloning operation. Through its specialized capabilities, it establishes a reliable connection with the ECU in Boot Mode, facilitating the backup and restoration of critical data. This approach not only streamlines the cloning process but also contributes to the overall reliability and effectiveness of automotive ECU Diagnostics and ECU Programming.

The challenging nature of this Hyundai ECU underscores the need for specialized tools, and Hexprog II hardware, coupled with the feature-rich Hexprog II Tuner software, emerges as a sophisticated and tailored solution. This integrated approach, combining hardware and software functionalities, empowers automotive technicians to navigate the intricacies of Boot Mode and successfully clone the ECU, showcasing the adaptability and prowess of Hexprog II ecosystem in addressing the unique demands posed by advanced automotive electronics.

SIM2k-240 Engine Control Unit (ECU) distinguishes itself significantly from conventional ECUs by incorporating both ECU and Transmission Control Unit (TCU) functionalities into a singular PCB. This unique integration poses a distinctive challenge when it comes to cloning the entire ECU, requiring users to clone the ECU and TCU components separately, despite sharing the same PCB. This divergence is attributed to the presence of different Microcontroller Units (MCUs) in each segment.

Specifically, the ECU portion of the SIM2k-240 ECU features the TC1767 MCU, while the TCU section is equipped with the TC1766 MCU. To successfully clone this comprehensive ECU, users must approach the task by separately cloning the ECU and TCU parts, treating them as distinct entities within the same hardware. Notably, Hexprog II Tuner software offers specific options for these two MCUs, presenting users with the choices of SIM2k-240 TC1767 ECU and SIM2k-240 TC1766 TCU. In adhering to the normal ECU Cloning procedure, users are required to select and clone each segment – ECU and TCU – individually, following the designated options in Hexprog II Tuner software. Despite the shared PCB, the separation of these components is paramount, as the distinct MCUs demand specific attention during the cloning process. This nuanced approach ensures that the unique functionalities and data associated with both the ECU and TCU are accurately replicated.

HexProg II Tuner SIM2K-240 ECU TC1767
HexProg II Tuner SIM2K-240 ECU TC1767

By offering discrete options for SIM2k-240 TC1767 ECU and SIM2k-240 TC1766 TCU within the software, Hexprog II Tuner facilitates a meticulous and tailored ECU Cloning procedure. This approach acknowledges the intricacies of the SIM2k-240 ECU's design and ensures that users can successfully replicate both the ECU and TCU functionalities, preserving the integrity of the original unit. In essence, the procedure involves treating the SIM2k-240 ECU as a composite entity, unraveling its dual nature through a carefully orchestrated cloning process that encapsulates the specificities of each MCU within the shared PCB architecture.

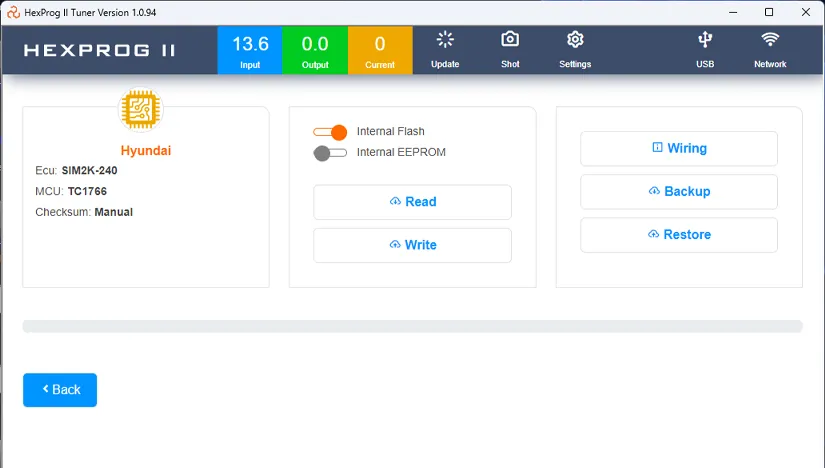

HexProg II Tuner SIM2K-240 TCU TC1766
HexProg II Tuner SIM2K-240 TCU TC1766

Below are the steps for cloning SIM2K-240 ECU:

  1. Preparation: Before starting the cloning process, ensure you have the necessary tools and equipment. You'll need Hexprog II hardware and Hexprog II Tuner software with valid cloning and ECU license. You must use Hexprog II Tuner software to check the wiring diagram of the ECU, and arrange soldering equipment and stay wires as necessary.
  2. Accessing Boot Mode: Since this ECU can only be accessed through Boot Mode, the first step is to open the ECU and establish a connection to its internal circuitry along with external connections. This is usually done using specialized tools and boot and signal wires given with Hexprog II, and it requires a delicate touch to avoid damaging any components.
  3. Reading Original ECU/TCU Data: Once the connection to the ECU is established, Hexprog II hardware, combined with Hexprog II Tuner software, is used to read and extract the data from the original ECU. It is possible to read internal flash separately in .bin format that can be used for modification and Chip tuning. This data contains essential information about the vehicle's settings, calibration, and configurations.
  4. Creating a Backup: The user needs to use the backup button to back up the whole ECU data. After successfully reading the data from the original ECU, backup files are created. This backup file contains all the information required to clone the ECU accurately. It is essential to store these backup files safely as it serves as the foundation for the cloning process. Also, make backup data from the TCU part.
  5. Preparing the New ECU: If the goal is to clone the ECU onto a new or refurbished one, the new ECU must be prepared. This involves ensuring that the new ECU is compatible with the vehicle and in working condition.
  6. Restoring Data onto New ECU: With the new ECU prepared, the next step is to use Hexprog II hardware and Hexprog II Tuner software to restore the original backup file onto the new ECU. This process transfers all the original settings and configurations to the new ECU, effectively creating an identical copy of the original. Before restoring the original data, we recommend users to make a backup of new or donor ECU for safety concerns in the future. Do the same for the TCU part inside the ECU.
  7. Testing and Verification: After the cloning process is complete, it's essential to verify the functionality of the newly cloned ECU. The vehicle should be tested to ensure that all systems are working correctly and that there are no error codes or malfunctions.
  8. Finalization: Once the cloned ECU is verified to be functioning properly, the ECU can be securely reinstalled in the vehicle. It is crucial to ensure that all connections are secure, and the ECU is properly seated.

The process of ECU Cloning is a critical undertaking that demands exclusive attention from certified professionals or highly skilled technicians with a profound understanding of the intricacies involved. It is imperative to underscore the significance of entrusting such operations to individuals possessing the requisite expertise and knowledge in this specialized field. The complexity inherent in ECU Cloning requires a meticulous approach, and any missteps or oversights during the cloning or repair procedure can have far-reaching repercussions on both the performance and security of the vehicle.


Beyond its fundamental ECU Cloning capabilities, SIM2K-240 Engine Control Unit and Transmission Control Unit (ECU/TCU) unveils a realm of advanced possibilities by allowing users to read the internal flash and engage in intricate file modifications using Hexprog II. Moreover, this distinctive functionality empowers automotive technicians and tuning enthusiasts to execute targeted adjustments, such as DTC Removal. Files can be effortlessly uploaded directly from their accounts on www.hexprog.com. Additionally, users have the flexibility to engage in Stage 1 performance tuning for this ECU using compatible third-party software.

Upon completing the file modifications, the seamless integration of the SIM2k-240 Engine Control Unit (ECU) with Hexprog II Tuner software facilitates a user-friendly process for writing the modified file back into the ECU. This crucial step is executed with an automated checksum correction mechanism, ensuring the integrity and accuracy of the written data.

The modified internal flash file, now fine-tuned to meet specific performance parameters such DTC Removal is seamlessly integrated back into the ECU. The automated checksum correction feature in Hexprog II Tuner software plays a pivotal role in this process. It meticulously verifies and rectifies checksum values, safeguarding against any potential errors that may arise during the writing phase. This automated checksum correction not only streamlines the operation but also contributes to the overall reliability of the ECU. By ensuring that the checksum values align accurately with the modified data, Hexprog II Tuner software guarantees a precise and error-free writing process. This attention to detail becomes particularly critical in maintaining the ECU's stability and functionality post-modification.

More Info about SIM2K-240

Hexprog II is a specialized ECU/TCU Chip Tuning Tool that can read and write all contents of the SIM2K-240ECU and TCU using various methods. For more detailed information about the SIM2K-240 and the capabilities of Hexprog II tool, you can refer to the following links:

Please visit the provided links to learn more about the SIM2K-240 ECU and TCU and Hexprog II Tool for ECU Chip Tuning

Last Update: 12/11/2023
